Adapter Fitting for Drum Pump

Adapter Fitting for Drum Pump
NEW, INNOVATIVE AND PATENTED - TWO FITTINGS in ONE

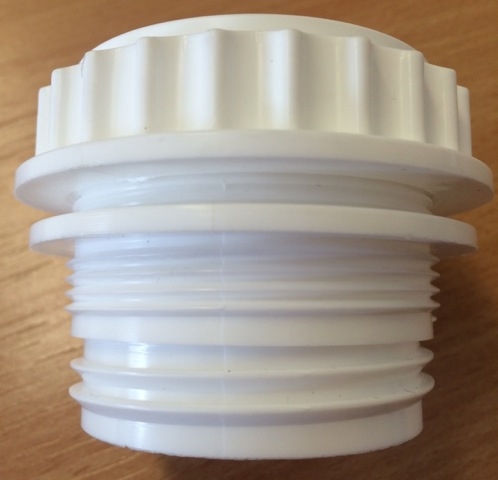

MBSP55 - Combines the Ezi-action® MBSP and M55 Adaptor Fittings

The Ezi-action® MBSP55 can be used to secure the Ezi-action® Drumpump into either a metal drum with British Standard fine thread (58mm outside diameter of bung) opening or into a plastic drum with 56 x 4 buttress opening.

The 200 litre drums manufactured in New Zealand by Alto have both these thread openings so the Ezi-action® MBSP55 Adaptor Fitting will fit both sides of an Alto drum.

The Ezi-action® MBSP55, like all Ezi-action® M Fittings, is a three-part construction with locking nut, which can easily be loosened by hand and the locking ring which grips the Ezi-action® Drumpump shaft when hand tightened, assures security and leak free operation.

The Ezi-action® Drumpumps are the hand pump of choice around the world when dispensing from bulk containers and the addition of the Ezi-action® MBSP55 Adaptor Fitting is a welcome solution to the problem of different thread openings on drums.

The combination of two threads on one fitting simplifies the transfer of the Ezi-action® Drumpump between different drums.

The Ezi-action® M Fittings required in New Zealand and Australia are MBSP55, M63 and M69. The thread requirement can vary with the country of origin of the drum.
Price:
NZ$ 12.32 excluding GST

NZ$ 14.17 including GST
UOM:
Each
NZP MBSP55
Purchase Qty:



ADAPTOR FITTING GUIDE

1. How to Determine the Ezi-action® Adaptor Fitting for a Drum with internal threaded opening.

a. Measure across the opening internal thread width.

b. Measure the width of the bung.

Measuring drum opening Measuring width of bung

This opening measures close to 55mm.            This bung measures close to 55mm.

Both these drums require an Ezi-action® M55 fitting.



2. How to Determine the Ezi-action® Adaptor Fitting for a Container with external threaded opening.

a. Measure across the opening outside thread width.

b. Examine the thread pitch.

The width is 55mm.
This container requires an Ezi-action®
C55 Fitting

This container requires an Ezi-action® C63Int Fitting.

3. How to Determine the Ezi-action® Adaptor Fitting for an IBC

Note: The IBC needs a small inner cap within a large cap. ( see photo)

a. Remove the small inner cap.

b. Measure the internal opening and examine the thread.

If the opening has width of 58mm with a fine thread the IBC requires an Ezi-action® MBSP Adaptor Fitting.

If the opening has width of 55mm with a medium thread the IBC requires an Ezi-action® M55 Adaptor Fitting.

The most commonly required fittings for IBC's are the Ezi-action® MBSP and M55 adaptor fitting.

NEW with Ezi-action® 200/55 Drumpumps INNOVATIVE PATENTED Ezi-action® MBSP55 ADAPTOR FITTING Two drum thread styles in one adaptor fitting. Ezi-action® MBSP55 Adaptor Fitting eliminates the need for having both the Ezi-action® MBSP and the Ezi-action® M55 Adaptor Fittings packaged with each Ezi-action® 200/55 Drumpump. Makes it easier to have the right fitting at hand. Simplifies the fitting options. Saves time. Supports drum recycling. Less plastic so better for the environment. Unique features retained. Durable and chemical resistant.
